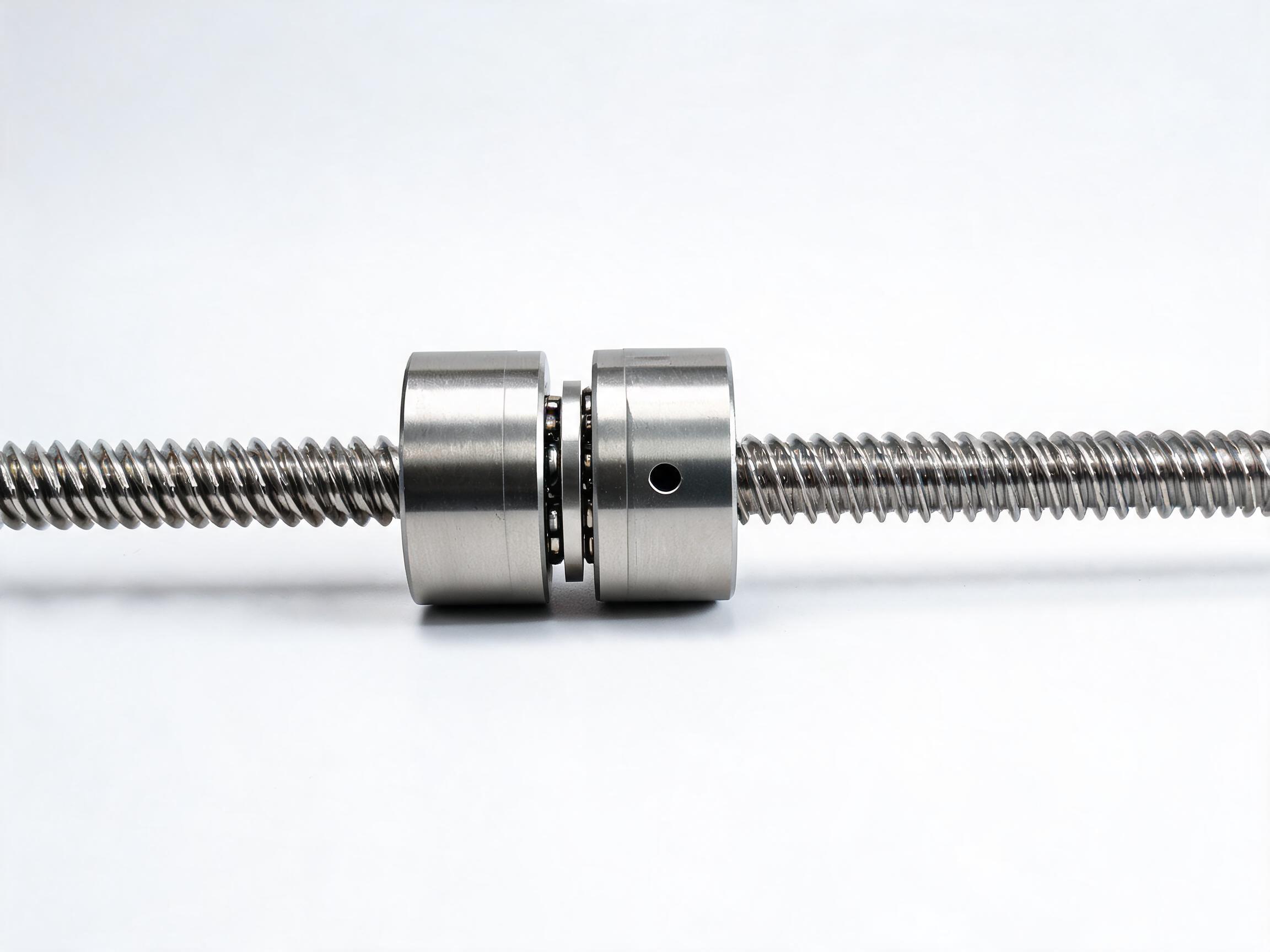

DFU Series Double Nut Zero-Backlash Ball Screw
DFU Series double-nut zero-backlash ball screw with precision spacer pre-load delivering <0.003 mm axial play and 1.5× the dynamic load of single-nut equivalents. Available in C7 rolled or C5 ground precision, shaft diameters 16–40 mm. Designed for bidirectional positioning axes in automation, semiconductor handling, and measurement equipment.
Key Features
- Zero backlash <0.003 mm in both directions via precision spacer pre-load — eliminates position loss on direction reversal
- 1.5× dynamic load versus single-nut SFU — DFU2005 delivers 10.2 kN vs 6.8 kN for SFU2005
- Three pre-load classes (P0/P1/P2) balance rigidity vs drag torque for speed-critical or stiffness-critical axes
- C5 ground variant delivers ±0.008 mm/300 mm lead accuracy combined with zero backlash — standard for semiconductor and optical stages
- Climate-controlled pre-load measurement with ±0.001 N·m torque resolution ensures consistent spacer ring calibration
- Available in shaft diameters 16–40 mm with 5/10/20 mm lead options
Common Sourcing Problems & How We Solve Them
Buyer Pain Points
- Inconsistent dimensional tolerances across batches cause machine downtime and re-work costs
- Suppliers unable to provide material certs, inspection reports or CE documentation for customs clearance
- Long lead times and high MOQ requirements make sample evaluation and first orders difficult
Dongfeng Solution
- ISO 9001:2015 process controls with CMM dimensional inspection on every production batch
- Full documentation package: material cert, SGS test report, CE declaration, packing list on request
- Flexible MOQ from 1 piece for samples; bulk order lead time 15–20 working days
Performance Data
- 10+ years of linear motion component manufacturing — 50+ export markets served
- Hardness tested to HRC 58–62; dimensional tolerance held to JIS / ISO / DIN standard grade
- CE & SGS certified; ISO 9001:2015 quality management system in production
Utility record
| Nut Type | Double nut, spacer pre-loaded |
|---|---|
| Shaft Diameter | 16 mm – 40 mm |
| Lead Options | 5 / 10 / 20 mm |
| Precision Grade | C7 (rolled) / C5 (ground) |
| Axial Backlash | < 0.003 mm |
| Material | Chrome Steel (GCr15 / 52100) |
| Shaft Hardness | HRC 58–62 |
| Pre-load Classes | P0 (light) / P1 (medium) / P2 (heavy) |
| Dynamic Load (DFU2005, C7) | 10.2 kN |
| Standard Lengths | 300 mm – 2000 mm |
Application fit notes
User Pain Point + Solution + Data
Single-nut ball screws have inherent axial play (0.005–0.02 mm) that causes position loss on direction reversal — a deal-breaker for bidirectional positioning axes in automation, pick-and-place, and measurement equipment. The DFU Series solves this with a double-nut pre-loaded design: two nuts are fitted on the same shaft with a precision spacer ring that applies opposing axial force to each nut's ball circuit. The result is zero backlash (<0.003 mm) in both directions, with dynamic load capacity 1.5× higher than a single nut of the same size due to the doubled ball contact area. Available in shaft diameters 16–40 mm with C7 rolled or C5 ground precision.cision.
Complete Specifications
| Parameter | Value |
|---|---|
| Nut Type | Double nut with precision spacer pre-load |
| Shaft Diameter Range | 16 mm – 40 mm |
| Lead Options | 5 mm / 10 mm / 20 mm (size-dependent) |
| Precision Grade | C7 (rolled) / C5 (ground) |
| Axial Backlash | < 0.003 mm (pre-loaded double nut)ut) |
| Material | GCr15 Chrome Steel (52100 equiv.) |
| Shaft Hardness | HRC 58–62 (induction hardened) |
| Pre-load Classes | P0 (light) / P1 (medium) / P2 (heavy) |
| Dynamic Load (DFU2005, C7) | 10.2 kN (1.5× single nut SFU2005) |
| Standard Lengths | 300 mm – 2000 mm |
| Support Bearing Block | BK/BF series (size-matched) |
Product Advantages
Zero Backlash <0.003 mm mm
The precision spacer ring applies opposing axial force to the two nuts, eliminating play in both forward and reverse directions. Axial backlash measures under 0.003 mm — suitable for bidirectional positioning axes where single-nut play would cause position loss on reversal.
Zero Backlash1.5× Load Capacity
Two nuts share the axial load through their respective ball circuits, effectively doubling the ball contact area. Dynamic load capacity is 1.5× higher than a single nut of the same diameter — the DFU2005 delivers 10.2 kN versus 6.8 kN for the SFU2005.
1.5× LoadAdjustable Pre-load
Three pre-load classes — P0 light, P1 medium, P2 heavy — let you balance rigidity against drag torque. P0 suits high-speed axes where friction matters; P2 suits heavy-cutting axes where maximum stiffness is needed. Specify at order time.
P0/P1/P2C5 Ground Option
For applications needing both zero backlash and high accuracy, the C5 ground variant delivers ±0.008 mm/300 mm lead accuracy. This combination is the standard for semiconductor wafer handlers and optical inspection stages.
C5 AvailableEnterprise Strength
Xiamen Dongfeng Bearing Mechanical & Electrical Co., Ltd.Ltd. — established 2014, 10+ years in precision ball screw manufacturing. Our 5,000 m² Xiamen facility operates 12 production lines with 200+ employees, including a dedicated double-nut assembly cell with climate-controlled pre-load measurement (±0.001 N·m torque resolution). Monthly capacity for DFU series: 5,000+ assemblies.
Certifications: ISO 9001:2015, CE conformity, SGS factory audit. Export markets: 50+ countries including Germany, Switzerland, USA, Japan, and South Korea. Partners: Supplying automation equipment manufacturers, semiconductor handler OEMs, and measurement instrument producers.
Pre-sales: Pre-load class selection based on application speed/rigidity requirements. After-sales: 18-month warranty, pre-load measurement data provided per assembly. Customer case: Supplied 3,000 DFU2005 C5 assemblies to a Swiss measurement instrument manufacturer — 5-year supply relationship, zero backlash drift reported, measured pre-load retention 98% after 10,000 hours.
Manufacturing, Exhibition & Quality Controltrol
Production Process & Quality Assuranceance
Process: GCr15 raw bar → CNC turning → induction hardening (HRC 58–62) → thread rolling or precision grinding → spacer ring precision grinding (±0.5 µm) → dual nut assembly with spacer → pre-load force measurement and calibration → running torque verification → lead accuracy measurement → packaging. The spacer ring grinding is the critical step — its width determines the pre-load force.
Quality testing: Axial backlash measured per assembly (≤0.003 mm), pre-load force verified on calibrated torque rig, running torque at 3 positions, lead accuracy by laser interferometer (C7) or laser scale (C5). Exhibitions: Exhibited at SEMICON China, automatica (Munich), and IAMD (Industrial Automation, Tokyo) to reach precision automation and semiconductor equipment manufacturers.
FAQ
What is the MOQ for DFU double-nut ball screws?
MOQ is 20 pieces per configuration (diameter + lead + precision grade + pre-load class). This is higher than single-nut SFU because the spacer ring grinding is configured per batch. For mixed configurations, 20-piece minimum per SKU. Sample assemblies available for qualified buyers.
What are the shipping options and lead time?
FOB Xiamen. C7 rolled standard lengths: 15–20 business days. C5 ground: 25–35 business days. Custom end machining: add 5–10 days. Sea freight: 25–35 days to Europe, 18–25 days to USA. Express courier for samples: 5–7 days.
How are double-nut assemblies packaged?
Each assembly is anti-corrosion oiled, wrapped in moisture-barrier film, and packed in foam-lined individual cartons. 5 assemblies per outer carton for sizes up to DFU25, 3 per carton for DFU32–40. Wooden crate packing for bulk export orders.
What payment methods do you accept?
T/T (30% deposit, 70% before shipment). L/C at sight for orders above USD 20,000. PayPal for sample orders under USD 3,000. Escrow service available for first-time buyers.
Can I get a sample assembly with a specific pre-load class?
Yes. Sample assemblies with specified pre-load class (P0/P1/P2) are available with buyer covering shipping. Pre-load measurement data is provided with the sample. For bulk orders of 50+ pieces, sample cost is fully credited.
Do you provide pre-load measurement data and OEM services?
Yes. Pre-load force and running torque measurement data is provided per assembly for all orders. OEM laser-engraved part marking on nut body available for 100+ piece orders. Custom spacer ring dimensions for non-standard pre-load values available for 200+ piece orders — share your pre-load force specification.
Request a Quote for DFU Double-Nut Assemblies
Send your shaft diameter, lead, precision grade (C7/C5), pre-load class (P0/P1/P2), length, and quantity — we reply within one business day.
Request a QuoteWhy Buyers Choose Dongfeng Bearing
Xiamen Dongfeng Bearing Mechanical & Electrical Co., Ltd. — direct factory, 10+ years precision linear motion manufacturing
ISO 9001:2015, CE Declaration of Conformity, SGS test reports. Documentation available for EU and North American import requirements.
12 precision grinding and CNC machining lines; monthly output 500,000+ pieces across linear bearing and guideway series.
Germany, USA, Japan, South Korea, India, Southeast Asia and 40+ other countries. FOB Xiamen with DHL / FedEx / sea freight options.
Technical selection support before order. Dimensional drawing, material cert and inspection report with shipment. 12-month warranty on manufacturing defects.
Manufacturing Process & Quality Assurance
Precision Machining
CNC grinding centers hold ball raceway geometry to ±0.003 mm. Induction hardening targets contact zones to HRC 58–62 without embrittling the full body.
CMM Dimensional Inspection
Every batch passes coordinate measuring machine (CMM) verification. Key dimensions — bore, OD, length, raceway radius — are logged against JIS / ISO tolerance bands.
Certification & QC
ISO 9001:2015 controls govern raw material intake, in-process check, and final inspection. SGS and CE documentation issued on request for each shipment.
Trade Shows & Partnerships
Regular exhibitor at Canton Fair and Hannover Messe. Established supply partnerships with automation integrators and machine tool OEMs across Europe and Asia.
