SBR16 Linear Motion Guide Rail Unit with Bearing Block

SBR16 integrated linear motion guide unit combining hardened GCr15 shaft, aluminum support rail, and double-row bearing block. Pre-assembled and ready to bolt on — 7.8 kN dynamic load at 16 mm shaft diameter. Designed for DIY CNC routers, desktop engravers, and educational automation builds.

RFQ by product fileMOQ: 100

LM Series Linear Ball Bearing Bush

Chrome steel linear ball bearing bush covering shaft diameters 6–60 mm, available in open and closed types. Recirculating ball retainer design delivers smooth, low-friction linear travel for CNC, automation, and general machinery.

SFU Series Rolled Ball Screw Assembly

SFU1605 rolled ball screw assembly with C7 precision grade, 5 mm lead, and pre-loaded single nut — suited for 3D printers, laser engravers, and light CNC gantry axes where cost-efficient linear motion at ±0.05 mm/300 mm positioning tolerance is sufficient.

HGR Series Heavy-Duty Linear Guideway Rail

HGR Series linear guideway rails feature a 58–62 HRC induction-hardened surface and four-row ball circuit geometry, giving CNC machine tool builders the rigidity and load capacity needed under heavy interrupted cuts.

RFQ by product fileMOQ: 30

SBR20 Heavy-Duty Linear Motion Guide Unit with Dual Bearing Blocks

SBR20 heavy-duty integrated linear motion guide unit with 20 mm shaft and dual bearing blocks, delivering 11.2 kN dynamic load per block (22.4 kN per axis). Standard lengths to 3000 mm. Designed for mid-size CNC routers, plasma cutting tables, and woodworking gantry machines.

RFQ by product fileMOQ: 100

LME Series Metric Flange Linear Bearing

European metric flanged linear bearing with open-type clearance slot, designed for bolt-on mounting into standard LME housings. Covers shaft diameters 8–60 mm, chrome steel construction, drop-in replacement for SKF LMEF, INA KGNOZ, and equivalent European series.

RFQ by product fileMOQ: 10

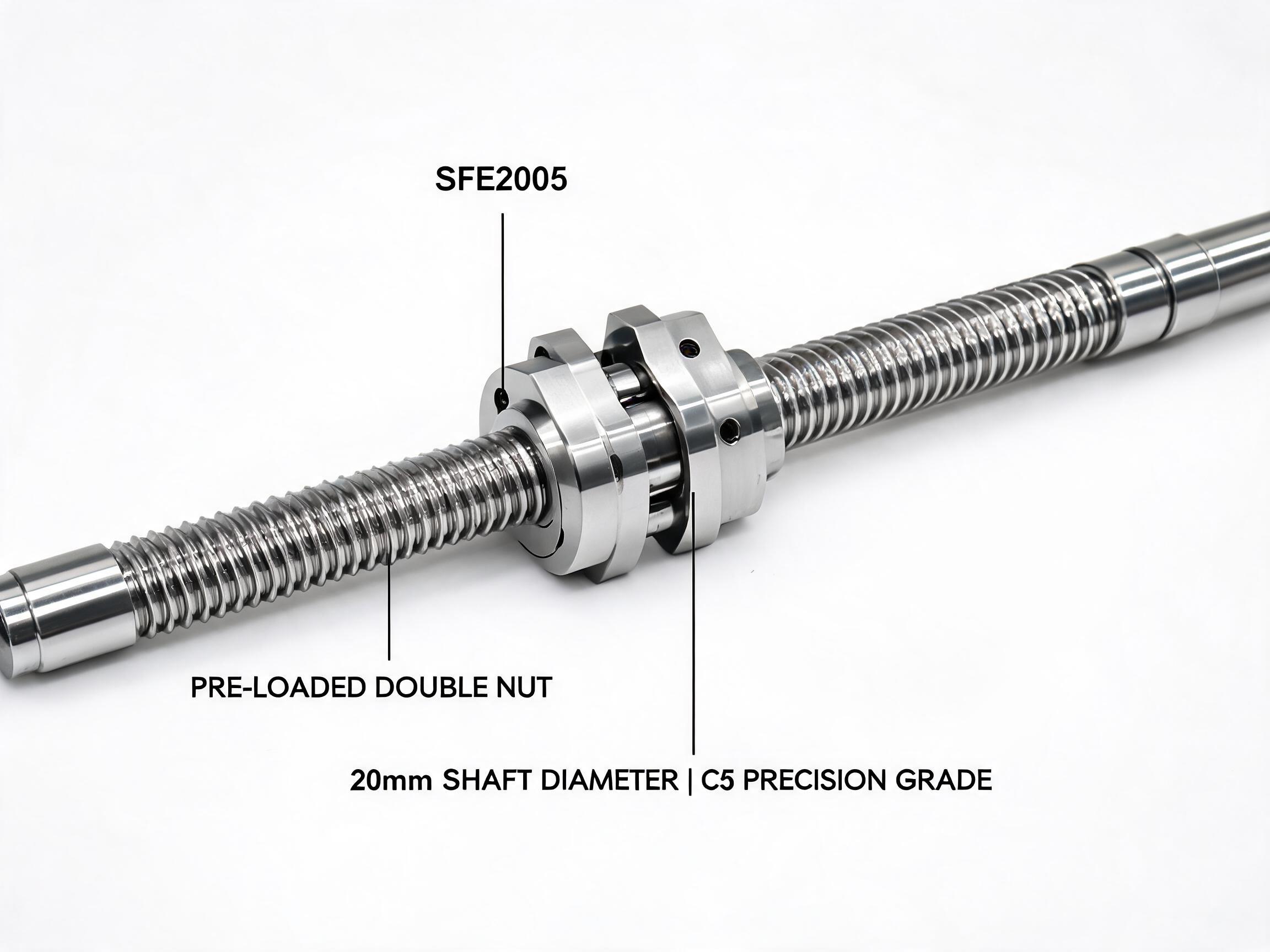

SFE Series Ground Ball Screw Assembly

SFE2005 ground ball screw assembly at C5 precision grade, delivering ±0.008 mm/300 mm lead accuracy with a 20 mm shaft and 5 mm lead — designed for semiconductor wafer handling, medical imaging stages, and precision CNC applications where positional repeatability under 0.01 mm is a hard requirement.

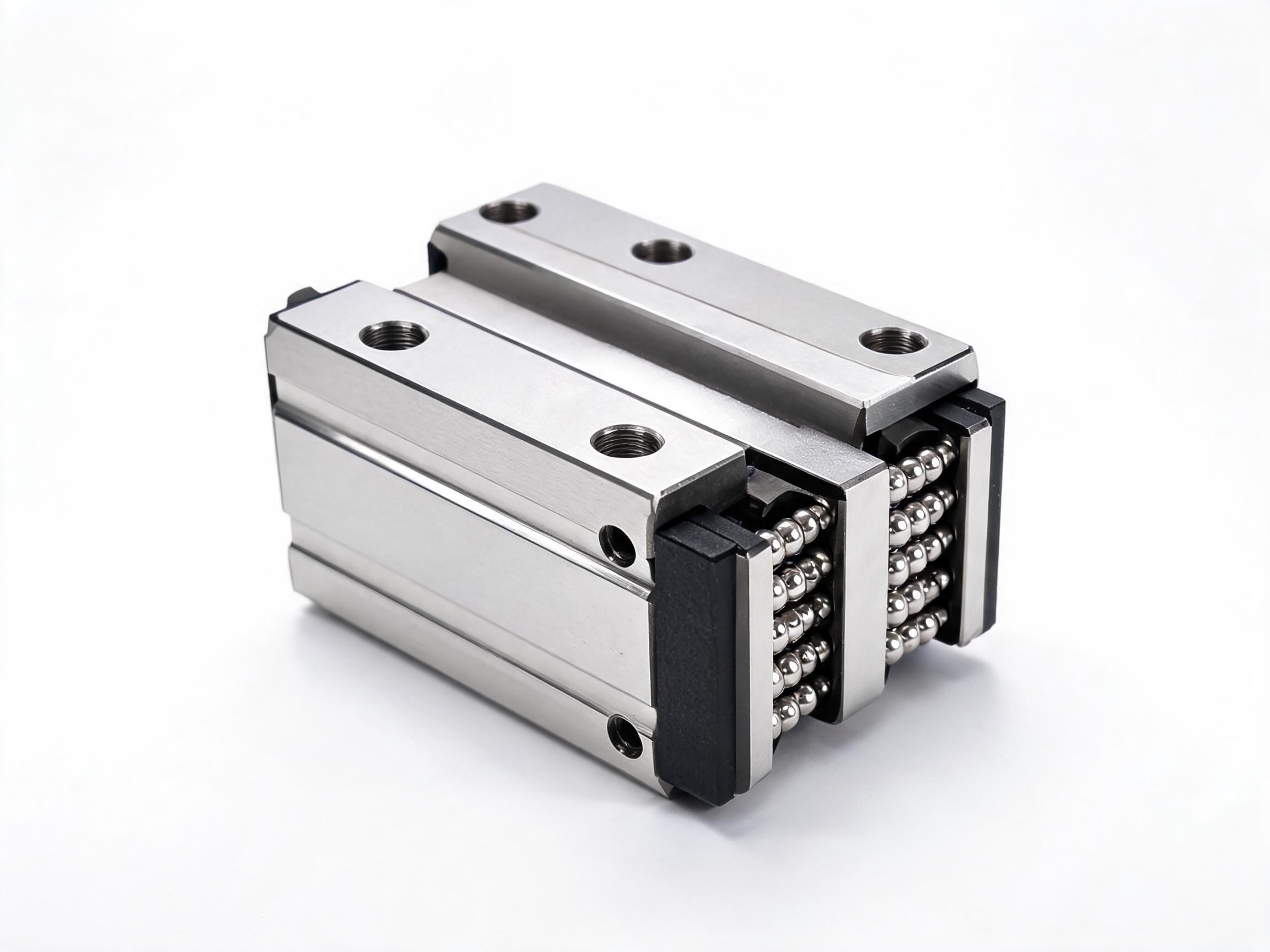

HGH Series Flange-Type Linear Guideway Carriage Block

HGH Series flange-type carriage blocks run on HGR rails via a four-row ball recirculation circuit, with a self-aligning angular tolerance of ±0.5° that absorbs minor rail misalignment — suited for retrofit builds and replacement sourcing on CNC and automation frames.

RFQ by product fileMOQ: 30

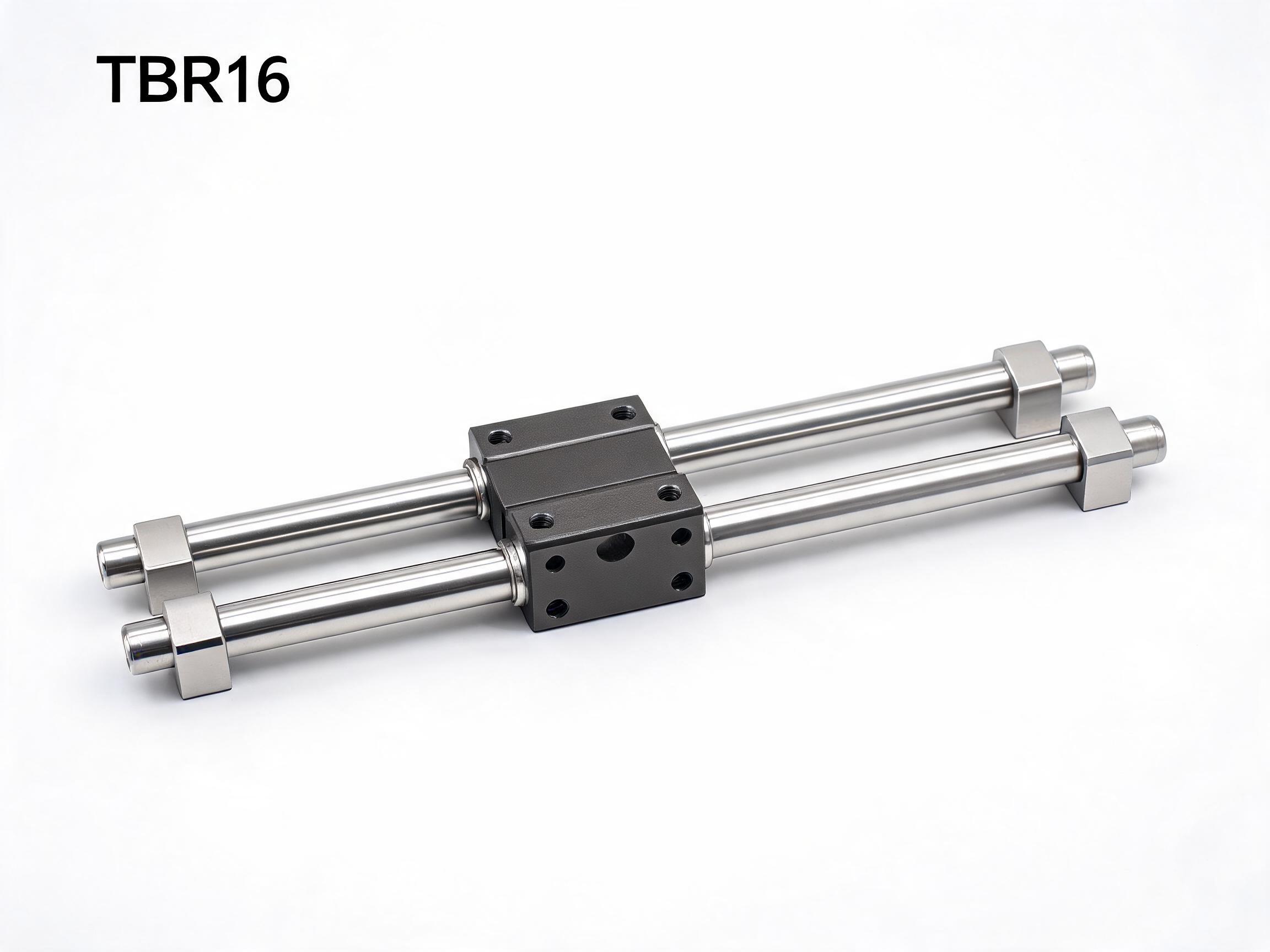

TBR16 Synchronized Dual-Shaft Linear Motion Guide System

TBR16 synchronized dual-shaft linear motion guide system with single carriage spanning two parallel 16 mm shafts. Delivers 15.6 kN dynamic load and 2× moment resistance for cantilevered axes. Designed for pick-and-place equipment, automation gantries, and synchronized motion applications.

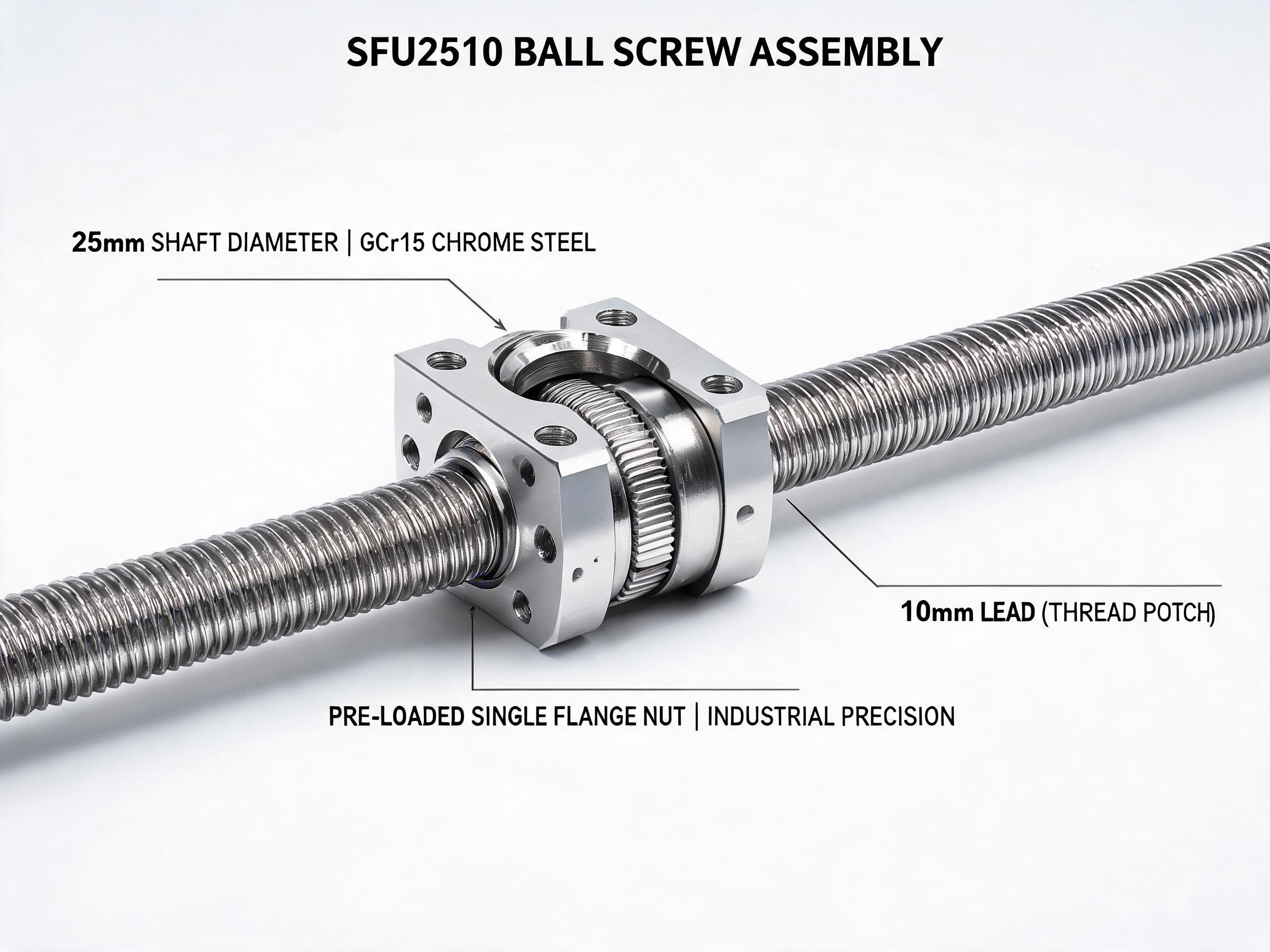

SFU2510 Rolled Ball Screw Assembly with Flange Nut

SFU2510 rolled ball screw assembly with 25 mm shaft and 10 mm lead, delivering 17.2 kN dynamic load (2.5× the SFU1605) at C7 precision grade. Designed for mid-size CNC router X/Y axes up to 3 m travel, plasma cutting tables, and woodworking gantry machines where the SFU1605's load capacity is insufficient.

RFQ by product fileMOQ: 100

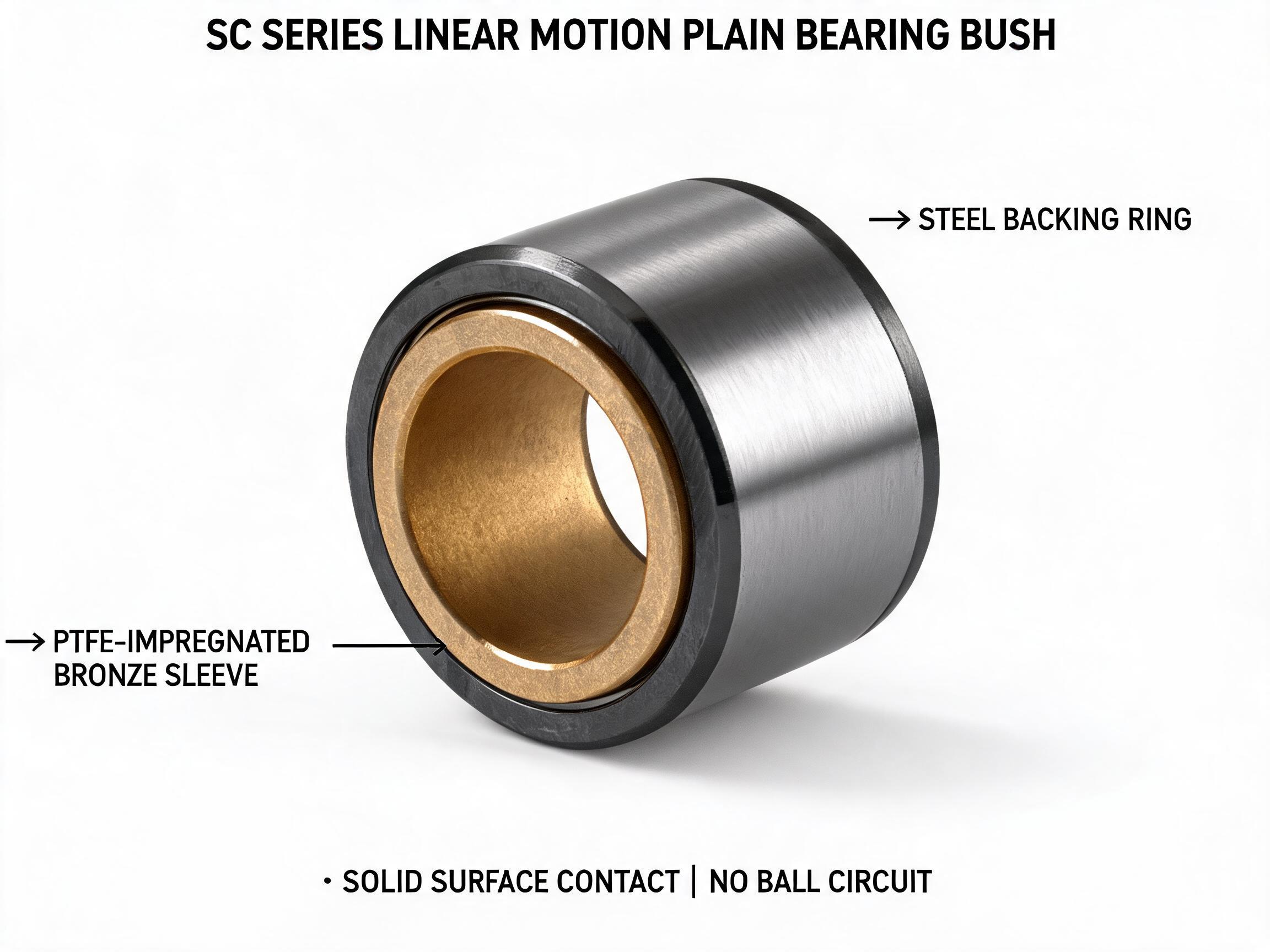

SC Series Linear Motion Plain Bearing Bush

SC Series plain (sleeve) linear bearing with PTFE-impregnated bronze bushing replacing the ball circuit — contamination-tolerant, shock-resistant, and rated to 200°C. Covers shaft diameters 6–60 mm, ideal for foundry, woodworking, packaging, and high-temperature industrial equipment where ball bearings fail.

HGW Series Wide-Body Linear Guideway Carriage Block

HGW Series wide-body flange-type carriage blocks feature a 20–30% wider mounting footprint than standard HGH carriages, delivering 28.4 kN dynamic load capacity and triple-seal contamination defense for heavy gantry CNC mills, inverted vertical axes, and high-moment-load automation frames.
