LME Series Metric Flange Linear Bearing
European metric flanged linear bearing with open-type clearance slot, designed for bolt-on mounting into standard LME housings. Covers shaft diameters 8–60 mm, chrome steel construction, drop-in replacement for SKF LMEF, INA KGNOZ, and equivalent European series.
Key Features
- Circular flange with 3-bolt pattern for direct bolt-on mounting to European-standard housing plates
- Open type (OP) has longitudinal clearance slot to prevent rotation and allow minor radial adjustment
- Shaft diameter range 8–60 mm following DIN ISO 10285 LME dimensional standard
- GCr15 chrome steel outer ring and balls, PA66-GF glass-fiber nylon retainer
- Dimensional replacement for SKF LMEF and INA KGNOZ series — verify housing drawing before ordering
- H5 precision grade available on request for LME8–LME40
- MOQ 100 pcs per size; mixed sizes in one order accepted
- Suited for CNC machines, woodworking centers, laser cutting heads, and European automation equipment
Common Sourcing Problems & How We Solve Them
Buyer Pain Points
- Inconsistent dimensional tolerances across batches cause machine downtime and re-work costs
- Suppliers unable to provide material certs, inspection reports or CE documentation for customs clearance
- Long lead times and high MOQ requirements make sample evaluation and first orders difficult
Dongfeng Solution
- ISO 9001:2015 process controls with CMM dimensional inspection on every production batch
- Full documentation package: material cert, SGS test report, CE declaration, packing list on request
- Flexible MOQ from 1 piece for samples; bulk order lead time 15–20 working days
Performance Data
- 10+ years of linear motion component manufacturing — 50+ export markets served
- Hardness tested to HRC 58–62; dimensional tolerance held to JIS / ISO / DIN standard grade
- CE & SGS certified; ISO 9001:2015 quality management system in production
Utility record
| Shaft Diameter Range | 8 mm – 60 mm |
|---|---|
| Flange Type | Circular, 3-bolt pattern |
| Outer Ring Material | Chrome Steel GCr15 (52100) |
| Ball Material | Chrome Steel GCr15 |
| Retainer Material | PA66-GF Glass-Fiber Nylon |
| Precision Grade | Normal / H5 on request |
| Types | Closed (UU), Open (OP) |
| Standard Reference | DIN ISO 10285 LME |
| Compatible Brands | SKF LMEF, INA KGNOZ (dimensional) |
Application fit notes
LME Series Metric Flange Linear Bearing
European machinery often uses flanged linear bearings where the bearing mounts from the front face of a housing plate rather than being pressed in from the side. The LME series follows the European metric dimensional standard (DIN ISO 10285 LME variant), with a circular flange and equally spaced bolt holes. The open type (OP) has a longitudinal slot that allows the bearing to be adjusted or locked against rotation inside the housing. Shaft diameters run 8–60 mm. Outer rings are GCr15 chrome steel; balls are GCr15 with a PA66-GF retainer. These are used as direct replacements for SKF LMEF, INA KGNOZ, and other European-dimension flange bearings.
Specifications
| Parameter | Value |
|---|---|
| Shaft Diameter Range | 8 mm – 60 mm |
| Flange Type | Circular flange, 3-bolt pattern |
| Outer Ring Material | Chrome Steel GCr15 (52100 equiv.) |
| Ball Material | Chrome Steel GCr15 |
| Retainer Material | PA66-GF Glass-Fiber Nylon |
| Precision Grade | Normal / H5 (on request) |
| Types Available | Closed (UU), Open (OP) |
Key Features

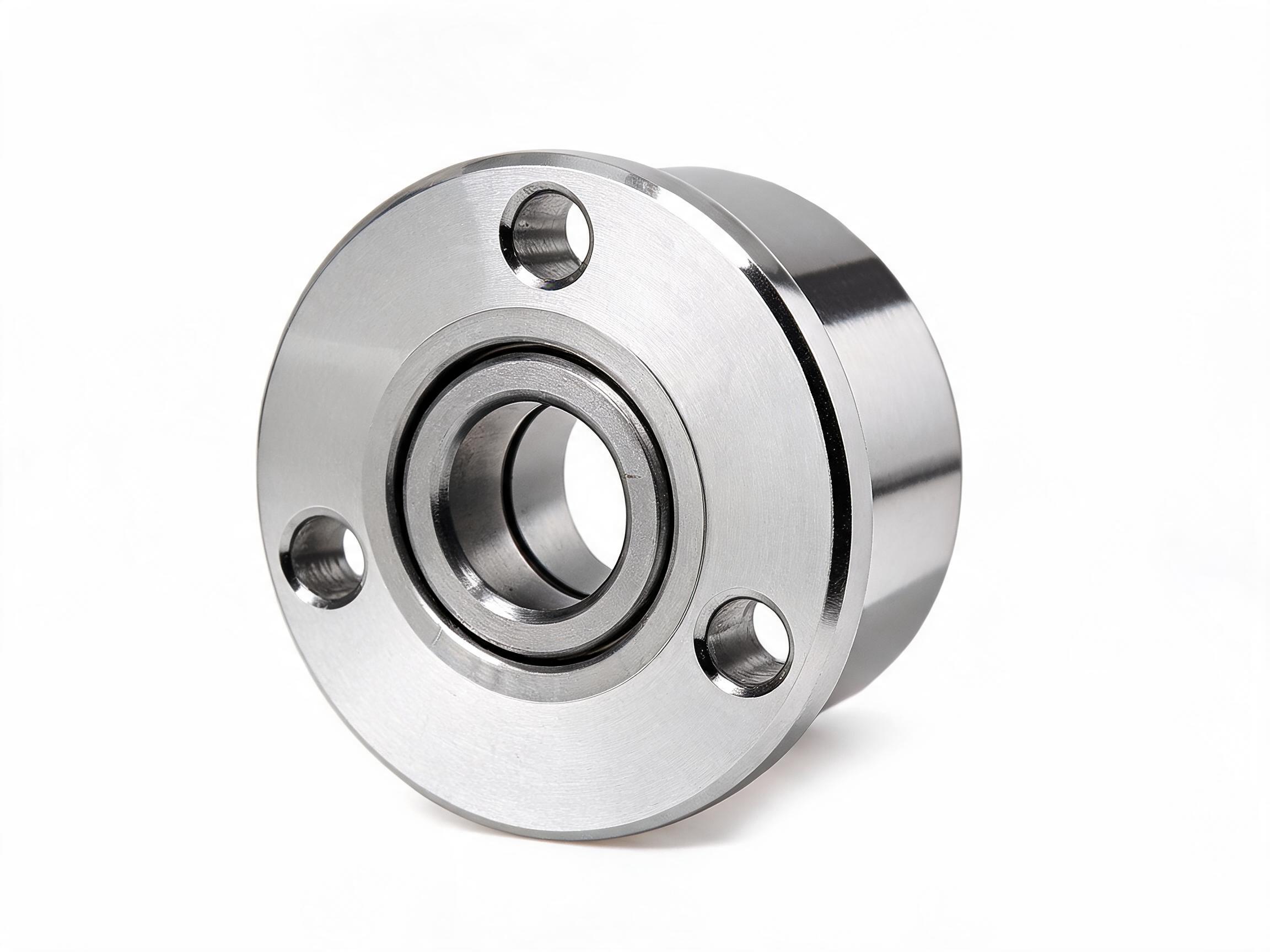

Flanged Bolt-On Mounting
Circular flange with 3-bolt pattern matches standard LME housing plates used in European machine tools and automation lines. No press-fit tooling needed; bolts directly to the face plate.
3-Bolt FlangeOpen Slot for Adjustable Fit
The longitudinal clearance slot on the OP type allows slight radial adjustment inside the housing and prevents rotation without an external lock ring. Useful when replacing worn bearings in existing housings that may have slight bore variation.
OP Open TypeEuropean Metric Dimensions
Follows DIN ISO 10285 LME envelope dimensions. Confirmed dimensional compatibility with SKF LMEF, INA KGNOZ, and equivalent series — buyers can validate against their own housing drawings before ordering.
DIN ISO 10285Replacement buyers: If you are upgrading or maintaining European-origin equipment, check your housing bore diameter and bolt-circle against the LME series dimension table (available upon request). The OP slot orientation can be specified at order stage.
Typical Applications
LME flange bearings appear in European CNC machining centers, woodworking machines, laser cutting heads, medical imaging tables, and packaging equipment where the flanged design simplifies front-access installation and replacement. The open type is especially common in split housings on textile and printing machinery.
FAQ
What is the MOQ and are mixed sizes allowed in one order?
MOQ is 100 pcs per individual size and type. Mixed sizes in one shipment are accepted; each size line needs to meet the 100 pcs minimum. Lead time for common sizes (LME8–LME30) is 10–20 business days; larger sizes available upon request.
Are these a confirmed drop-in for SKF LMEF or INA KGNOZ?
LME series dimensions match the ISO 10285 LME envelope which those brands also follow. We recommend buyers verify outer diameter, flange diameter, bolt-circle, and length against their own housing or the OEM drawing before placing a large order. Sample sets are available.
Can the slot orientation on OP type be customized?
Standard slot is at 90 degrees from the flange bolt hole. Other orientations can be discussed for orders of 500 pcs or more; please note your requirement at inquiry stage.
Need Flange Bearing Replacements?
Share your shaft diameter, quantity, and housing drawing or part number — we will confirm dimensional compatibility and provide FOB Xiamen pricing within 1 business day.
Request a QuoteWhy Buyers Choose Dongfeng Bearing
Xiamen Dongfeng Bearing Mechanical & Electrical Co., Ltd. — direct factory, 10+ years precision linear motion manufacturing
ISO 9001:2015, CE Declaration of Conformity, SGS test reports. Documentation available for EU and North American import requirements.
12 precision grinding and CNC machining lines; monthly output 500,000+ pieces across linear bearing and guideway series.
Germany, USA, Japan, South Korea, India, Southeast Asia and 40+ other countries. FOB Xiamen with DHL / FedEx / sea freight options.
Technical selection support before order. Dimensional drawing, material cert and inspection report with shipment. 12-month warranty on manufacturing defects.
